PCB connectors AKZ1130 and AKZ1140
We are expanding our product portfolio with the AKZ1130 and AKZ1140 PCB connectors with a pitch of 7.62 mm. Our connectors offer numerous advantages and are ideal for a wide range of applications.
The following variants are available:

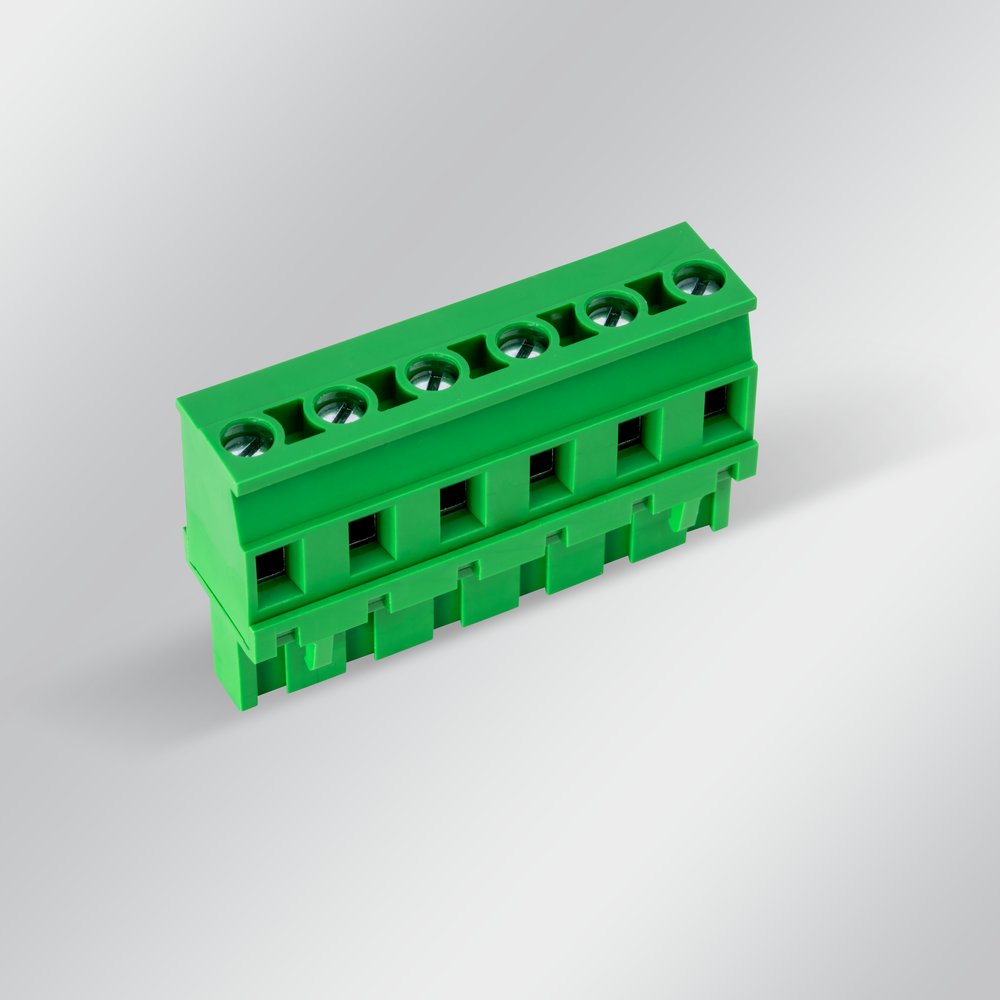

- AKZ1130/..7.62-GREEN

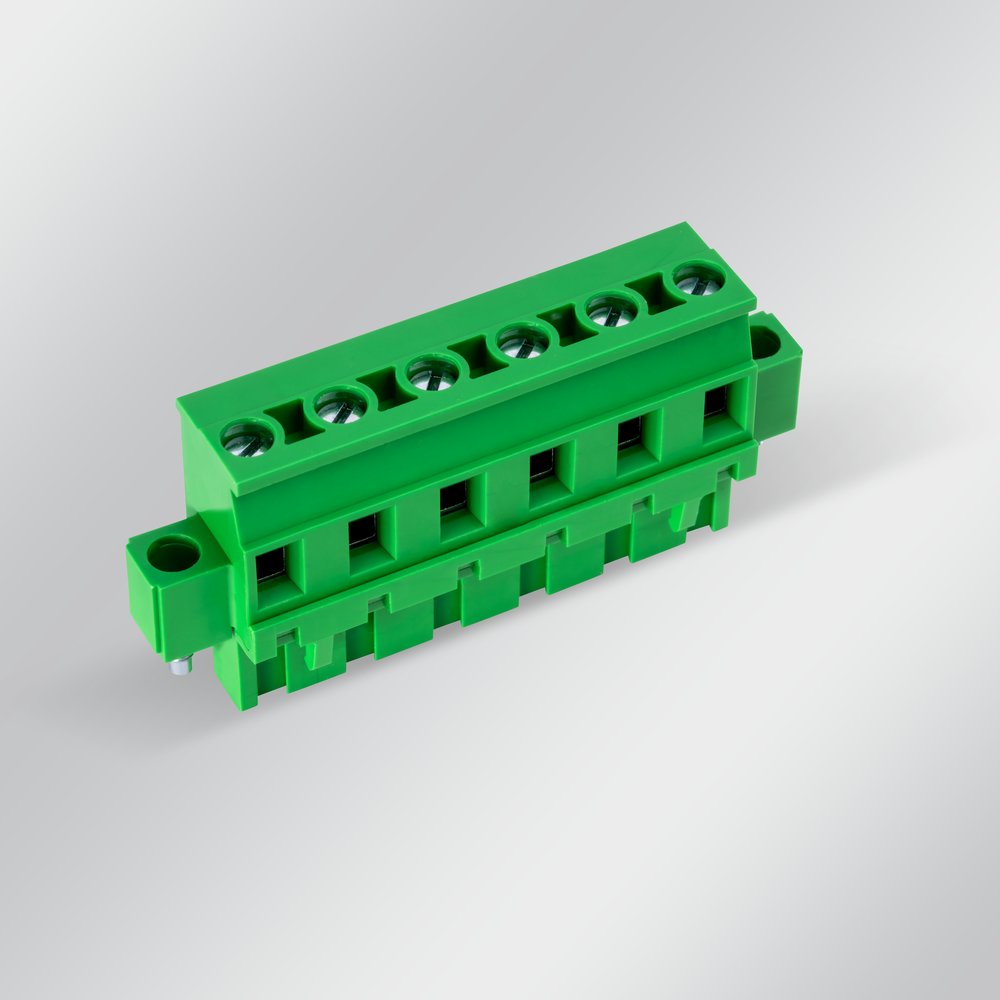

- AKZ1130/..F-7.62-GREEN (with fixing flange)

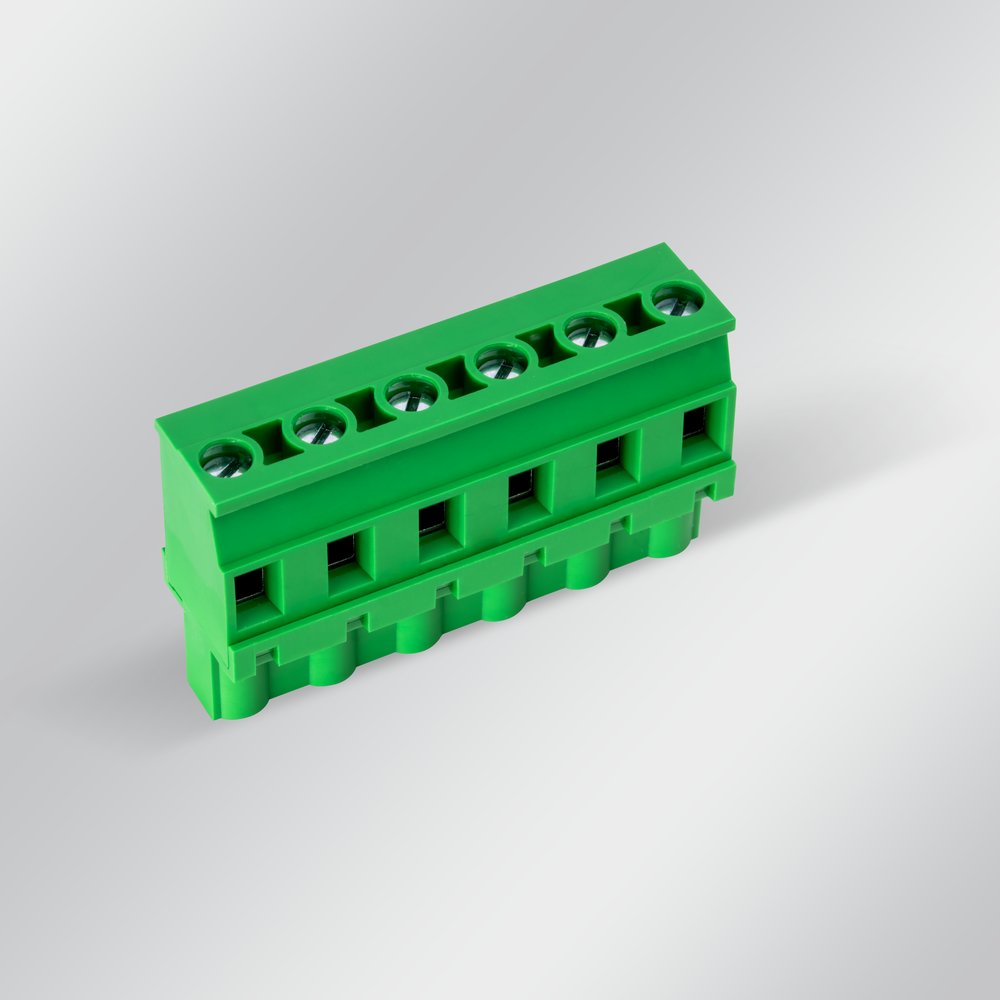

- AKZ1140/..7.62-GREEN

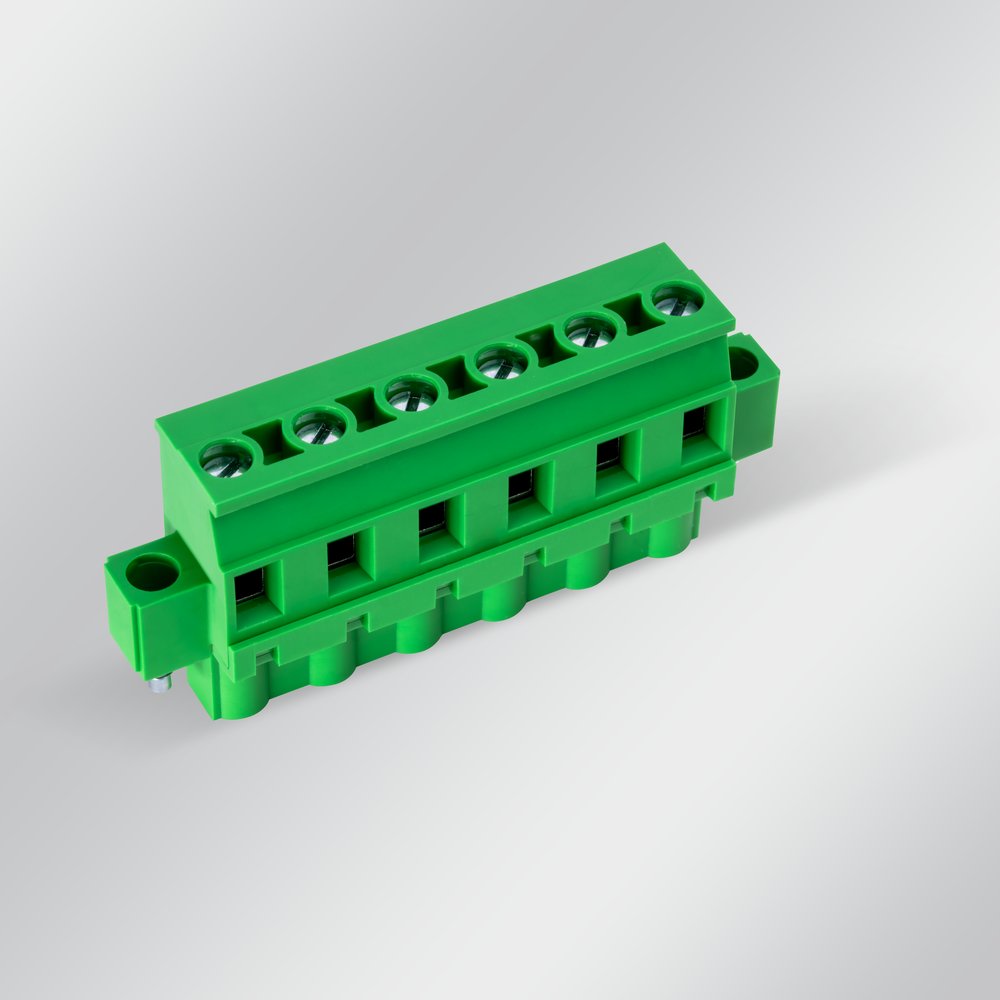

- AKZ1140/..F-7.62-GREEN (with fixing flange)
The modified connectors with a pitch of 7.62 mm enable a rated voltage of up to 400 V - ideal for applications with higher voltage requirements.
Both series feature the tried-and-tested lift principle, which ensures particularly easy handling. You can also choose between versions with or without a screw flange.
Highlights in detail:
- 2-12-pole versions
- Lift principle for simple operation
- Grid dimension: 7.62 mm
- Rated voltage up to 400 V
- Coding with coding star CS1
- Snap-in hooks optionally on or against the conductor connection side
For an optimum combination, we recommend the matching male pin strips STLZ960 or STLZ965/..F, which are perfectly matched to the new connectors.
Conclusion:
With the AKZ1130 and AKZ1140 series, we offer you intelligent connector solutions that minimise transmission losses while ensuring maximum reliability.
